Model:FT-SQ13
Brand:fengtu

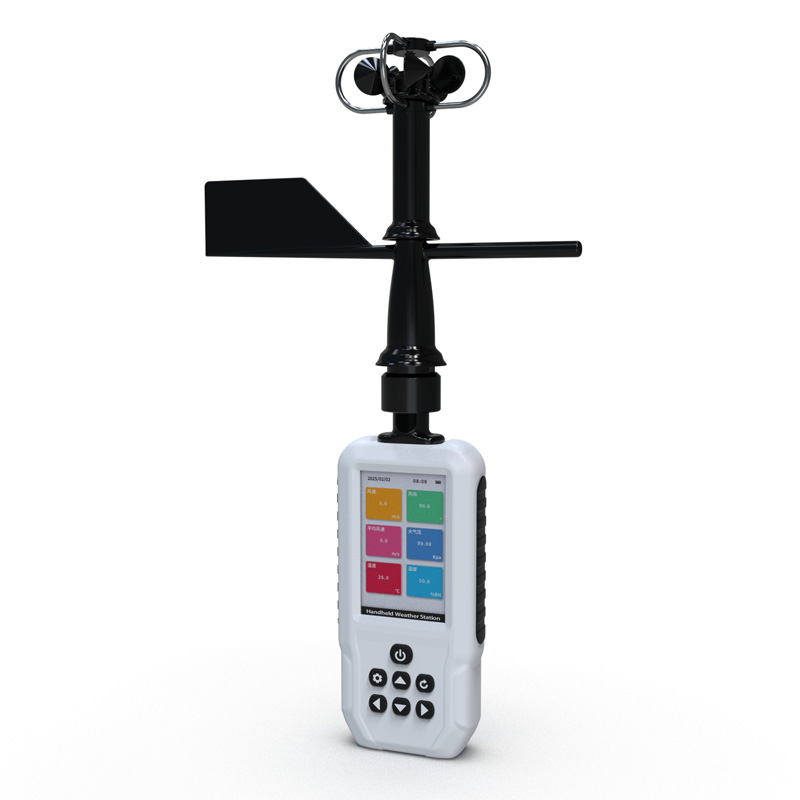

1、Thirteen-element handheld weather station Product Introduction
Thirteen-element handheld weather station, also known as a handheld weather instrument, is a portable and easy-to-operate mobile meteorological observation instrument that integrates multiple meteorological elements.The system uses precision sensors and intelligent chips to accurately measure wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet-bulb temperature, wave height, dew point temperature, wind chill index, and GNSS tri-mode positioning.It has a built-in high-capacity FLASH memory chip that can store at least one year of meteorological data; a Type-C communication interface facilitates further processing and analysis of meteorological data.
Thirteen-element handheld weather station can be widely used in meteorology, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research, and other fields.
2、Thirteen-element handheld weather station Features
1.3.5-inch LCD screen, displaying wind speed, wind direction, average wind speed, temperature, humidity, atmospheric pressure, altitude, thermal index, wet-bulb temperature, wave height, dew point temperature, wind chill index, and GNSS tri-mode positioning.☆
2.Built-in electronic compass, enabling 360-degree wind direction monitoring, with automatic and manual wind direction modes.☆
3.Large-capacity data storage, capable of storing up to 40,000 meteorological data entries (data recording interval adjustable between 1 and 60 minutes).
4.Type-C communication interface for retrieving internally stored data.☆
5.High-accuracy and fast GNSS tri-mode positioning (single BeiDou optional).☆
6.3800mAh lithium battery, low-power design, long standby time, and up to 18 hours of continuous operation.☆
7.Scientifically designed and portable structure.
8.External DTU-4G module for uploading to the cloud platform.The 4G module allows for easy replacement of the IoT SIM card.☆
9.Tripod bracket is optional.
3、Thirteen-element handheld weather station Technical parameters
| Meteorological parameters | Measurement elements | Measurement range | Precision | Resolution | Unit |
| Wind speed | 0-60 | ±0.3 | 0.01 | m/s | |
| Wind direction | 0-360 | ±3 | 0.1 | Degree | |
| Average wind speed | 0-60 | ±0.3 | 0.01 | m/s | |
| Temperature | -40-125 | ±0.2 | 0.1 | ℃ | |
| Humidity | 0-100 | ±2 | 0.1 | %RH | |
| Atmospheric pressure | 30-110 | ±0.1 | 0.01 | kPa | |
| Altitude | 0-9165 | ±1 | 1 | m | |
| Heat index | -40-140 | ±0.2 | 0.1 | ℃ | |
| Wet bulb temperature | -29-70 | ±0.2 | 0.1 | ℃ | |
| Waves | 0-14 | ±0.2 | 0.1 | m | |
| Dew point temperature | 0-70 | ±1 | 0.1 | ℃ | |
| Wind-chill index | 0-5 | ||||
| GNSS | Three-mode positioning | ||||
| Screen | 3.5 inch LCD screen | ||||
| Battery | 3800mAh lithium battery | ||||
| Communication | Type-C interface | ||||
| DTU-4G upload cloud platform | |||||
| Store | 40,000 data points | ||||
| Host size | 167*80*30mm | ||||
| Overall size | 370*208*80mm | ||||
| Total weight | 363.2g | ||||
4、Thirteen-element handheld weather station Configuration instructions
| Model; Factor | SQ13 |
| Wind speed | √ |
| Wind direction | √ |
| Average wind speed | √ |
| Temperature | √ |
| Humidity | √ |
| Atmospheric pressure | √ |
| Altitude | √ |
| Heat index | √ |
| Wet bulb temperature | √ |
| Waves | √ |
| GNSS three-mode positioning | √ |
| Dew point temperature | √ |
| Wind-chill index | √ |

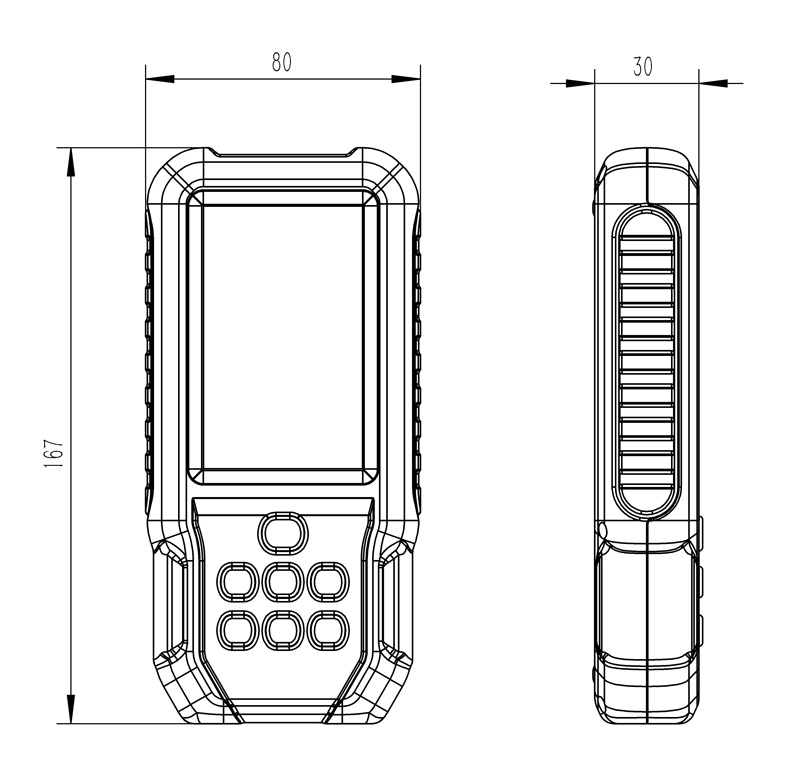

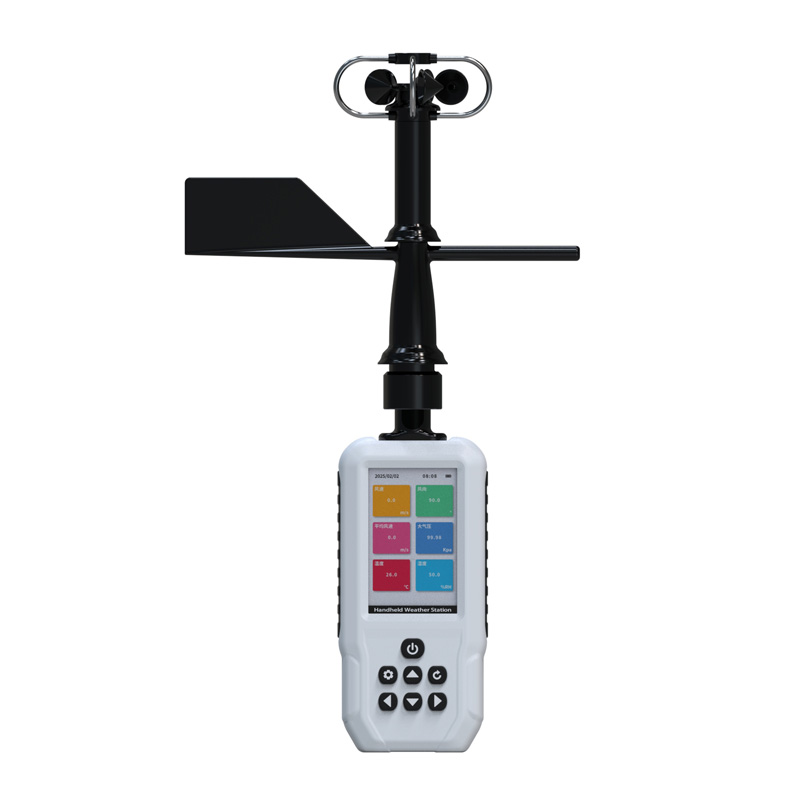

5、Thirteen-element handheld weather station Appearance and dimensions

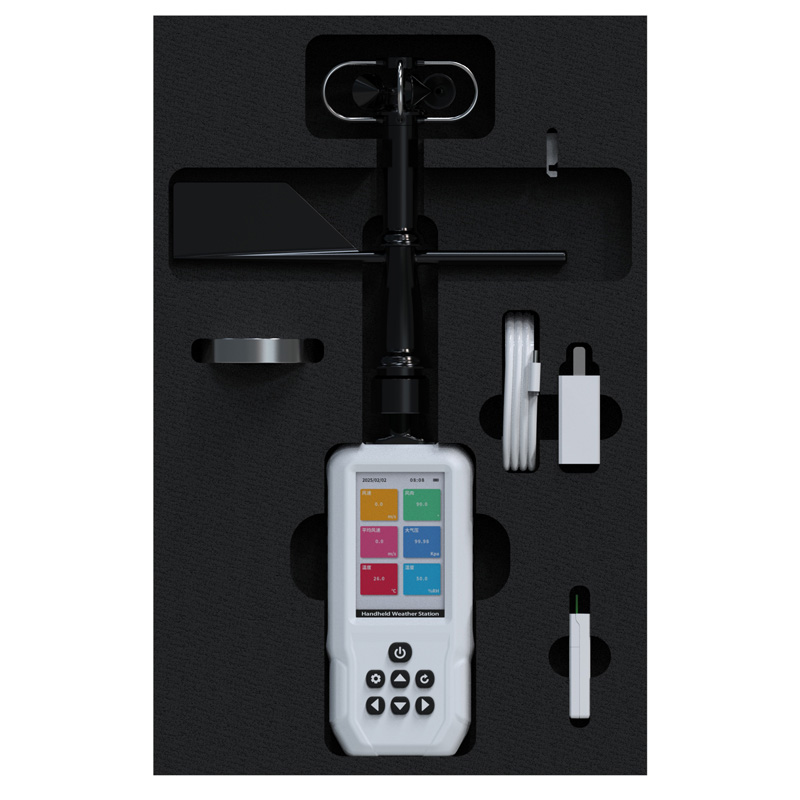

6、Thirteen-element handheld weather station Full box of accessories

①Wind direction calibration accessories
②Compass
③Data cable
④Charging adapter
⑤DTU-4G upload module
⑥Main unit
7、Thirteen-element handheld weather station Optional bracket
