Duct Air Velocity Sensor

1.Duct Air Velocity Sensor Product Overview

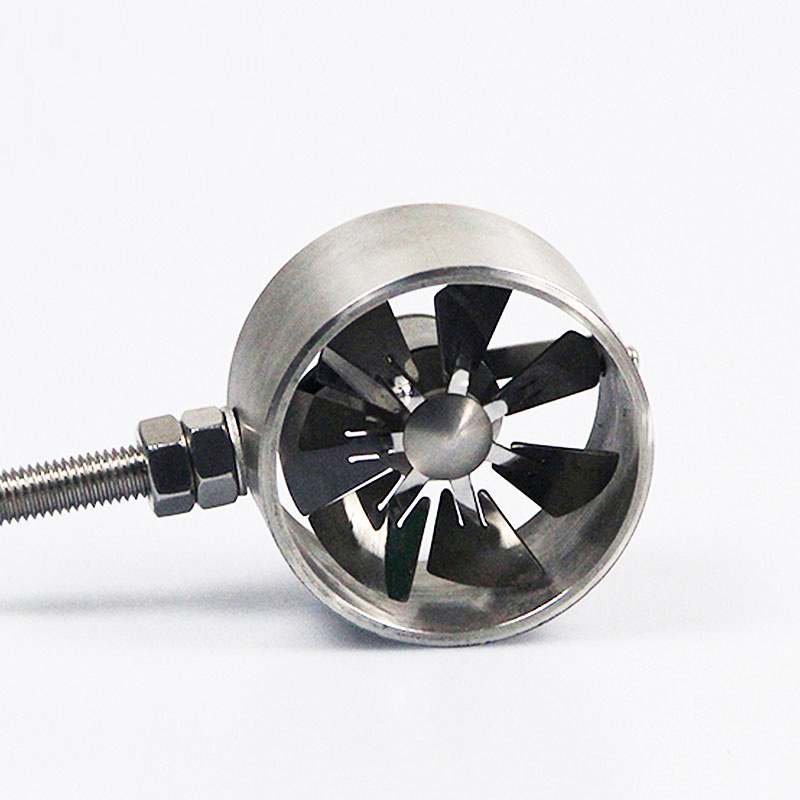

Duct Air Velocity Sensor is a wind speed measuring instrument independently developed and produced by our company.It consists of a housing, an impeller and a circuit module, and integrates a photoelectric conversion mechanism, an industrial microcomputer processor, a standard current generator, a current driver, etc.(This product has two types of pure stainless steel and plastic blades for customers to choose from)

The sensor housing and impeller are made of stainless steel, using a special mold precision die-casting process, with very small dimensional tolerances and high surface accuracy.The internal circuits are protected, and the entire sensor has high strength, weather resistance, corrosion resistance and waterproofness.The cable connector is a military plug with good corrosion and erosion resistance, which can ensure the long-term use of the instrument.At the same time, the imported bearing system inside the wind speed sensor is used to ensure the accuracy of wind speed collection.

The circuit PCB adopts military-grade A-grade materials to ensure the stability of parameters and the quality of electrical performance; the electronic components adopt imported industrial-grade chips, which makes the whole have extremely reliable anti-electromagnetic interference ability, and can ensure that the host can work normally in the range of -30℃～＋60℃ and humidity 35%～85% (no condensation).

2.Application Scope of Duct Air Velocity Sensor

This product can be widely used in the fields of engineering machinery (cranes, crawler cranes, gantry cranes, tower cranes, etc.), railways, ports, docks, power plants, meteorology, cableways, environment, greenhouses, breeding, air conditioning, energy-saving monitoring, agriculture, medical treatment, clean spaces, etc.to measure wind speed and output corresponding signals.

3.Duct Air Velocity Sensor Technical Parameters

Output type: RS485 communication type

Power supply: DC12-24V

Measuring range: □0-20m/s or □0-30m/s (maximum)

Accuracy: ±5%

Wind speed resolution: 0.1m/s

Starting wind speed: 0.3m/s

Communication protocol: MODBUS-RTU

Additional Note: Wind direction detection (this sensor does not have wind direction parameters, which is an optional custom function.This product does not have wind direction detection.If you need wind direction, please specify it for customization.To add wind direction parameters, the cost needs to be increased):

When the wind speed is less than 1m/s, real-time detection of forward or reverse

When wind speed>=1m/s, keep the most recent detection value

4.Duct Air Velocity Sensor Features

Since it was put on the market, this product has won praise from users for its excellent quality and outstanding performance.It has the following characteristics:

1.The appearance and structure are reasonably designed, beautiful and generous, small in size, easy to carry and easy to install.

2.High measurement accuracy, wide measuring range and good stability.

3.Has strong corrosion resistance and weather resistance.

4.Good dynamic characteristics, strong anti-external interference ability and high measurement accuracy.

5.Low power consumption, long circuit life, and can work stably for a long time.

6.The power supply has a wide adaptability range, good data information linearity, and long signal transmission distance.
