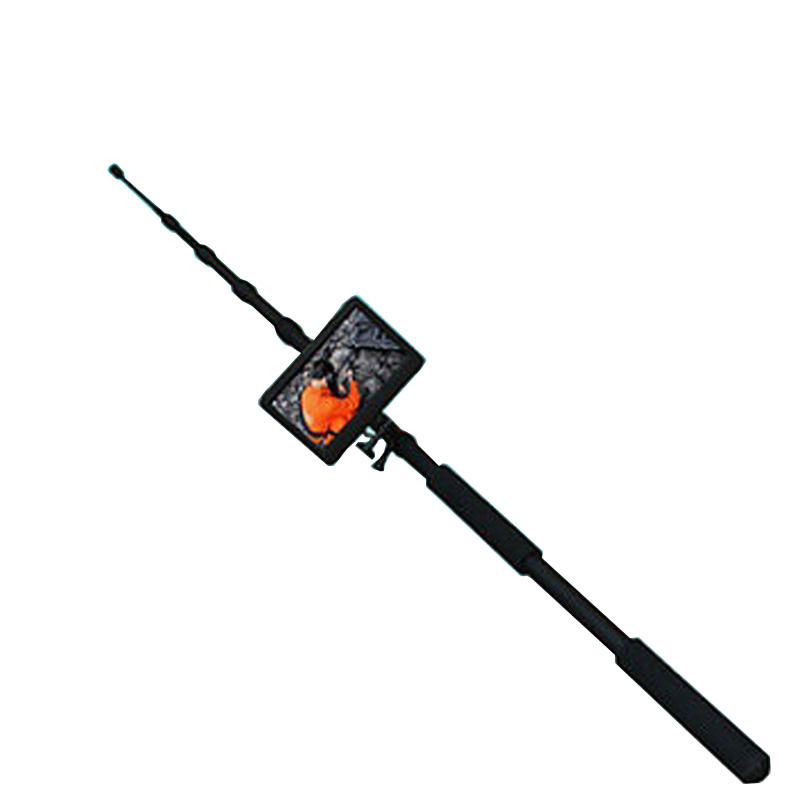

Infrared life detector

Infrared life detector detailed product introduction and technical parameters

a.Camera equipment: 1080P HD Sony CMOS

b.Light source: 12 infrared visible light LED beads for supplementary light (adjustable brightness)

c.Illumination: 0.0001Lux/F1.2

d.Lens: 3.6mm F1.2(H)120°

e.Focal length: 20-100cm

f.Camera style: connecting rod integrated type and articulated separated type

g.Waterproof level: connecting rod integrated waterproof level IP68, hinged separated type IP67

h.Audio & pickup: -48dB, speaker 1W, 300㎡

i.WiFi protocol 802.11 a/b

j.WiFi channel 2.4000-2.4835Ghz

k.WiFi power <16dBm

2) Infrared life detector aluminum alloy telescopic rod parameters

a.Telescopic pole length: about 5 meters after extension (actually about 4.95 meters) and 1.19 meters after contraction

b.Telescopic rod weight: 1.3kg

c.Number of telescopic rod sections: 5 sections

3) Infrared life detector HD display parameters:

a.Screen size: 7-inch LCD IPS omnidirectional screen

b.Screen pixels: 1024*600px

c.Screen brightness: 500cd

d.Video input: Full HD 1080P TVI

e.Video compression format: H.264

f.Video storage format: AVI

g.Main operating system: windows and Mac OS

h.Interface: USB2.O

i.System language: multiple languages ​​available

j.Power supply: DC5-12V 2A

k.Video LED control output: high brightness, low gray, 8-level control

l.Battery: 7500mhA lithium battery

m.Memory card: Standard 64G memory card

4) Infrared life detector outer packaging box parameters:

a.Outer box size: 119*21*14cm

b.Packing weight: 7.5kg Product parameters:

1) Some parameters of the front-end high-definition camera
