Wind speed and direction sensor
Model：FS485
Brand：fengtu
1.Wind speed and direction sensor technical indicatorsPower supply: DC12VWorking environment: -40~70℃, humidity ≤100% without condensationCommunication interface: RS485Operating current: 55mA DC12VStarting wind speed: 0.5m/sMinimum data interval: 0.5SHousing material: polymer engineering plastic2.
Get a Free Quote- Product details
- Related products
- Related articles
1.Wind speed and direction sensor technical indicators
Power supply: DC12V
Working environment: -40~70℃, humidity ≤100% without condensation
Communication interface: RS485
Operating current: 55mA DC12V
Starting wind speed: 0.5m/s
Minimum data interval: 0.5S
Housing material: polymer engineering plastic
2.Wind speed and direction sensor parameters
| parameter | Measurement range | Resolution | Accuracy |
| Wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |
| wind direction | 0-360 degrees | 0.1 degree | ±1 degree |
| Average wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |

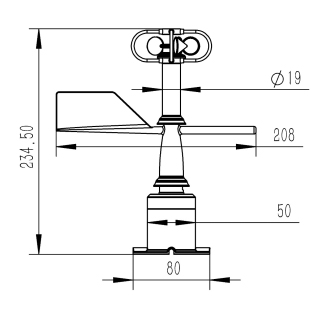

3.Wind speed and direction sensor appearance size

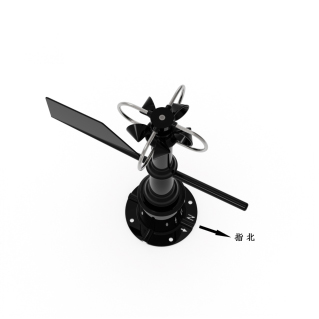

4.Wind speed and direction sensor installation requirements
When installing, the direction of the base arrow N must be directed to the north (as shown in the figure above)
