Cloud analyzer
Model：FT-YL1
Brand：fengtu
Cloud analyzer detailed product introduction and technical parametersCloud analyzer uses advanced machine learning technology and cutting-edge large model algorithms, combined with professional optical sensing technology, to accurately calculate the amount of clouds in the sky and the proportion of
Get a Free Quote- Product details
- Related products
- Related articles
Cloud analyzer detailed product introduction and technical parameters
Cloud analyzer uses advanced machine learning technology and cutting-edge large model algorithms, combined with professional optical sensing technology, to accurately calculate the amount of clouds in the sky and the proportion of sunlight passing through the clouds, providing more accurate data than traditional methods.
The high-sensitivity optical sensor can automatically capture the impact of clouds on sunlight in any lighting environment, making the data obtained in any environment more accurate and reliable.
| parameter | (4G version) |
| Annual stability | ±1% |
| Opening angle | 4° |
| Time constant | ≤10S(99% |
| Sampling frequency | 30s~86400s |
| Storing Data | >180 days |
| Networking requirements | 4G |

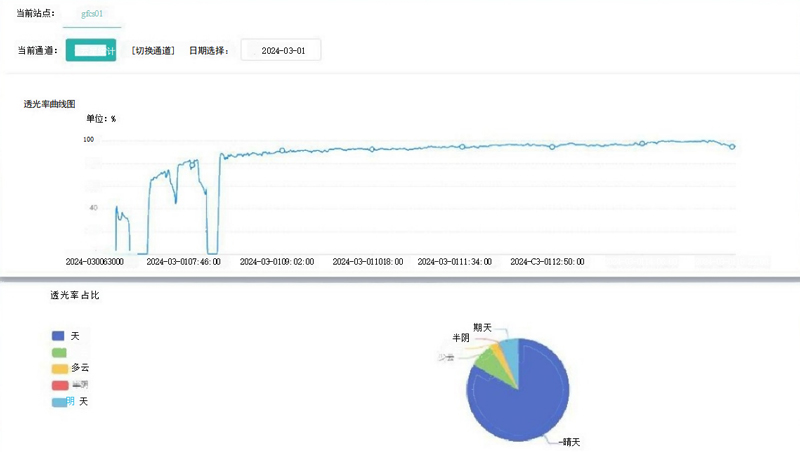

| Data Output | Status Flags Cloud cover level Sun blocking rate Clear sky ratio Few Clouds Percentage Cloudy ratio Half shade ratio Cloudy day ratio Latitude data Longitude data Sun Altitude Angle Sun direction angle Transmittance curve Analysis chart of the whole day |
| Output method | APIJson format |
| Operating temperature | -40~80℃ |
| Protection level | IP67 |
| weight | 10kg |
| power supply | DC12-20V |
| Current consumption | Maximum power consumption 7W, average power consumption in normal operation 1W |
| Data/power line | 10m (standard) |
Address:https://fengtusensor.com/Total-sky-imager/Cloud-analyzer.html
