Model:FT-SQ5A
Brand:fengtu

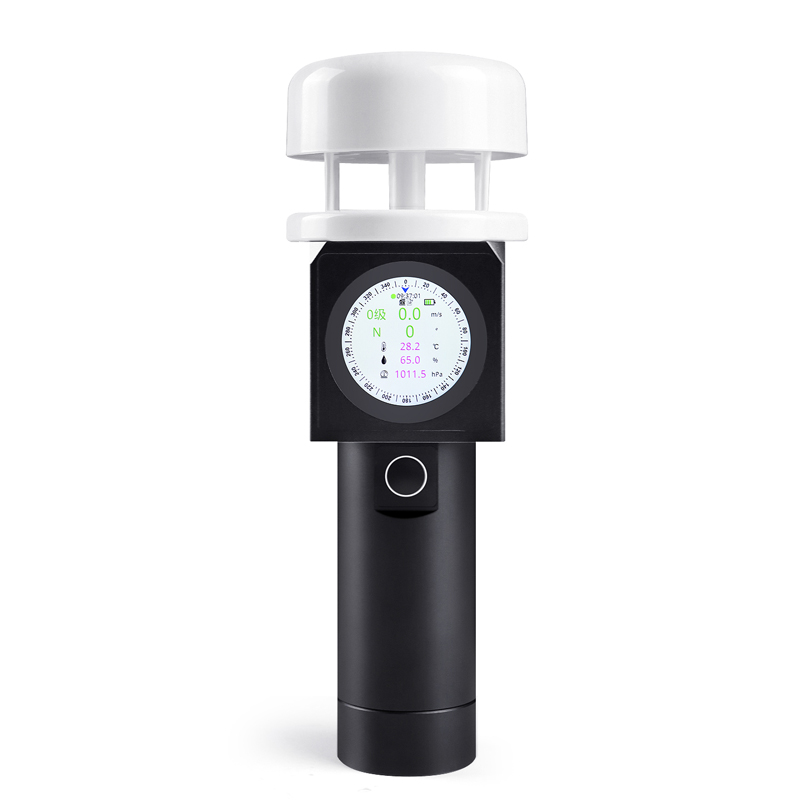

1.Small Handheld Portable Weather Station Product Introduction
Small Handheld Portable Weather Station uses the time difference of ultrasonic waves in the air to measure wind speed and direction.
Real-time monitoring of air temperature, humidity, atmospheric pressure, wind speed, wind direction, altitude (optional)
The weather station has its own display screen, which can display the test data in real time. It is light (engineering plastic ABS shell), strong and durable, has no moving parts, and does not require maintenance and on-site calibration. The specially designed handle is convenient for users to hold with one hand, and weighs only 0.85kg. With a built-in Bluetooth module, you can use the dedicated APP mobile phone software provided by the manufacturer to receive test data on your mobile phone in real time; the internal storage module of the instrument can store up to 365 days of monitoring data, which is particularly suitable for field inspections.
2. Small Handheld Portable Weather Station Features
No moving parts, zero wear
Maintenance-free, long service life
Adopt ultrasonic probe reflection type, more compact structure
Internally powered by a removable standard 18650 rechargeable lithium battery
Optional temperature, humidity and atmospheric pressure sensors
Built-in Bluetooth transmission module
3. Typical Applications of Small Handheld Portable Weather Station
Handheld meteorological multi-factor detection
Mobile inspection
Power safety inspection
Ship, dock and navigation inspection
Urban environmental monitoring
4. Small Handheld Portable Weather Station Parameters
Wind speed: measurement range 0-40m/s, resolution 0.1m/s, measurement accuracy ±5%
Wind direction: measurement range 0-359° without blind area, resolution 1°, measurement accuracy ±3°
Measuring principle: Ultrasonic time difference method
Air temperature: measurement range -40℃-+80℃, resolution 0.1℃, measurement accuracy 1℃
Air humidity: measurement range 0-100%, resolution 0.1, measurement accuracy 4%
Measuring principle: Energy gap temperature measuring element, capacitive polymer humidity measurement
Atmospheric pressure: measuring range 300-1100hPa, resolution 0.1hPa, measuring accuracy ±2 hPa
Altitude: measurement range -500 to 9000 meters, resolution 1 meter, measurement accuracy ±6% (optional)
Measuring principle: Capacitive MEMS sensor
Data output: Bluetooth, output specification BLE4.0
Internal power supply: 18650 rechargeable lithium battery (one battery is included as standard, up to three batteries can be installed)
Charging interface: lithium battery with external charging adapter
Working time: When fully charged (1 18650 lithium battery), it can work continuously for 24 hours
Dimensions: Ø82*249mm
