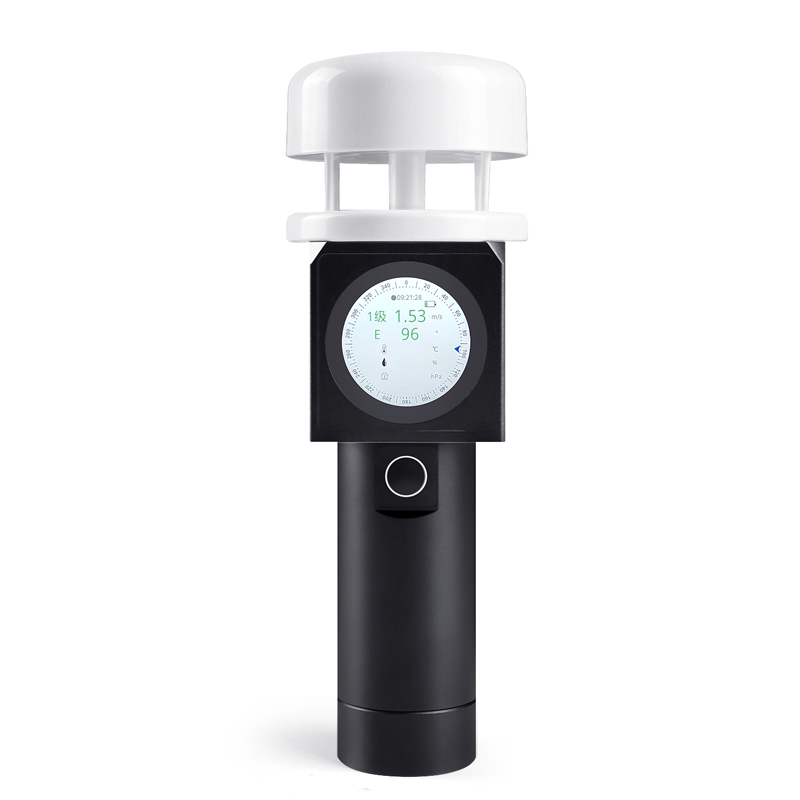

Ultrasonic Portable Mini Wind Meter

1、Ultrasonic Portable Mini Wind Meter Product Introduction

Ultrasonic Portable Mini Wind Meter series condenses laboratory-grade weather monitoring technology into a handheld device, adding a handle, power supply, display, wireless data transmission module, and software. Integrating three core technologies: ultrasonic sensing, multi-module integration, and intelligent IoT, it enables one-stop collection of accurate weather data for outdoor scenarios.

We've incorporated specialized designs tailored to the operational needs and environments of handheld weather stations. For example, a display allows on-site observers to directly read data, while also storing data on a TF card for at least 365 days of monitoring data. A dedicated app uses Bluetooth for data transmission, allowing users to receive real-time monitoring data on their phone.

Specially designed handle (made of an all-aluminum alloy) is lightweight and easy to hold with one hand. The bottom mounting thread allows for tripod mounting, making it ideal for field inspections.

2、Ultrasonic Portable Mini Wind Meter Key Features

No moving parts, zero wear

Maintenance-free, long service life

Uses a reflective ultrasonic probe for a more compact design

Powered by a removable standard 18650 rechargeable lithium battery

Optional sensors for temperature, humidity, air pressure, radiation, and PM2.5

Built-in Bluetooth transmission module

App data display interface

3、Ultrasonic Portable Mini Wind Meter Typical Applications

Handheld Multi-factor Meteorological Monitoring

Mobile Inspection

Power Safety Inspection

Ship, Dock, and Navigation Inspection

Urban Air Quality Inspection

4、Ultrasonic Portable Mini Wind Meter Technical Parameters

Wind Speed: 0-40m/s

Wind Force Level: 1-12

Wind Direction: 0-359°

Wind Direction: East, South, West, North, Northeast, Southeast, Southwest, Northwest

Temperature: -40°C to +80°C (optional)

Humidity: 0-100% (optional)

Air Pressure: 300-1100hPa (optional)

Altitude: Mean Sea Level (optional)

Illuminance: 0-200,000 lux (optional)

Radiance: 0-2000W/m² (optional)

UV Index: 0-15 (optional) )

PM2.5/PM10: 0-2000 μg/m³ (optional)

Data Display: Mobile App/1.6-inch Circular Touchscreen

Display: Touchscreen

Data Storage: TF Card

Charging/Data Port: Power adapter, 5V/2A output/Type-C port

Power Requirements: 3x18650 rechargeable lithium batteries

Battery Operating Time: Fully charged (3x18650 lithium batteries), up to 24 hours of operation (depending on weather conditions)

Dimensions: Ø82x249mm
