el detector
Model：FT-EL1
Brand：fengtu
el detector product introduction:EL detector is used for internal defect detection of photovoltaic solar panels, which can better help users complete product quality inspection and control production and installation risks.The el detector is equipped with a 16-megapixel infrared camera, which can ef
Get a Free Quote- Product details
- Related products
- Related articles
el detector product introduction:
EL detector is used for internal defect detection of photovoltaic solar panels, which can better help users complete product quality inspection and control production and installation risks.

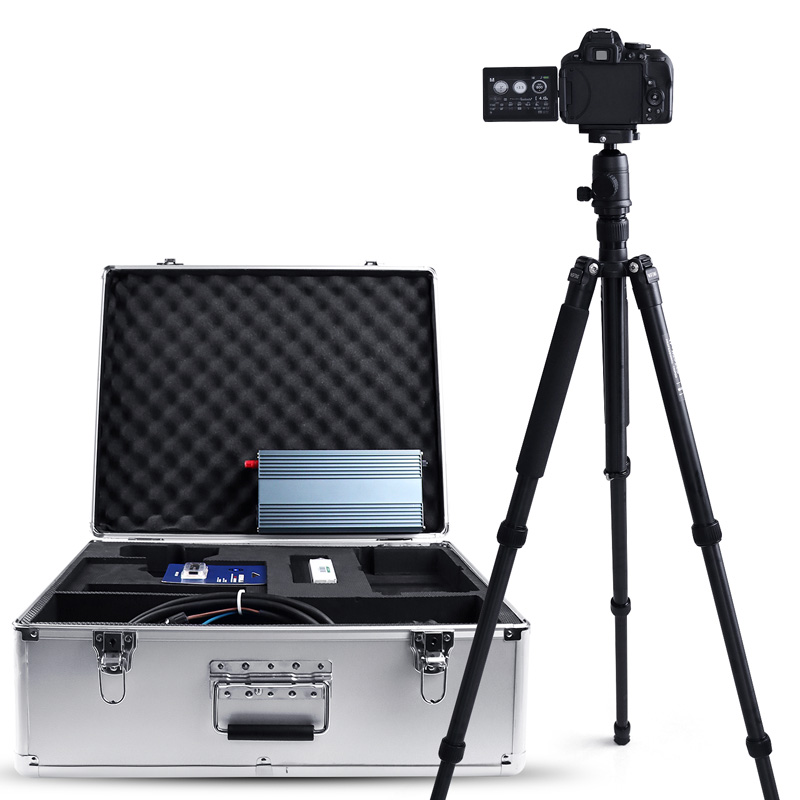

The el detector is equipped with a 16-megapixel infrared camera, which can effectively help users complete the quality inspection of photovoltaic panels. The whole machine is equipped with a lighter test power supply and tripod module, which is more convenient to carry and transport, and is not affected by aviation transportation.
el detector application scenarios:
Suitable for arrival inspection of photovoltaic power station components, as well as component quality inspection in warehouses/laboratories/factories.
el detector can identify defect types:
| Hidden crack | scrap | Fragments | Broken fence | Black Heart | Cold soldering |
| Process pollution | Low efficiency film | Black border | sintering | Over-carved | perforation |
El detector product features and advantages:
1. Easy to carry and suitable for mobile power station testing
2. Fully automatic focus with higher accuracy and better clarity
3. 16-megapixel infrared camera with clearer image quality
4. On-site testing of program-controlled constant current power supply is safer and more stable
5. Tablet computer image transmission viewing, no need for camera to view detection images
6. 1.5m lightweight tripod is easy to move
7. The whole machine module is as low as 5kg, and it is easy to carry in a backpack
El detector application areas:
| Scenes | Pre-installation testing of factory components, warehouse components, and power station on-site components, |
| test | During the day: outdoor infrared darkroom test; indoor test without sunlight; at night: direct tripod test, no effect from light or moonlight |
| Object | Crystalline silicon modules, thin film modules (customizable) |
| quantity | Monolithic component imaging inspection |
el detector specifications:
| Modules | Configuration | Specification |
| Camera Module | Pixel | 16 megapixels |
| Resolution | 4928X3264 | |
| chip | 23.6x15.6mm, CMOS sensor | |
| Accuracy | 1.5mm/pixel | |
| Light Shielding | Light, moonlight, starlight, slight indoor sunlight | |
| Detection area | 3000mm*2000mm | |
| Lenses | 18-55mm | |
| Focus Mode | Fully automatic focus | |
| Battery | 700mah | |
| Memory card | 32GB, Wi-Fi | |
| Data cable | 10cm | |
| Power Module | Output current | 0～10A adjustable |
| Current accuracy | 0.1A | |
| The output voltage | 0～60V adjustable | |
| Voltage accuracy | 0.1V | |
| control Panel | LED digital display program control panel | |
| Function settings | Power-on parameter presets are saved; output is powered on with one button | |
| Circuit Protection | Short circuit protection, open circuit protection, current backflow protection, overheat protection, static electricity protection, current and voltage adaptive matching photovoltaic panels | |
| On the wire | 10cm AC three-hole input line | |
| DC Line | 3m DC output cable, MC4 port docking assembly | |
| computer | tablet | Android tablet |
| software | Image transmission APP | View and download test images |
| Bracket system | Detection bracket | 1.5m aluminum alloy bracket |
| Detection PTZ | Bracket integrated installation, 360 degree rotation | |
| Usage Environment | Desert, plateau, roof, hill, slope, factory, roof, snow, greenhouse, agricultural solar complementation, fish solar complementation, wind solar complementation, and other environments | |
| Warranty and after-sales service | 2-year warranty, 24-hour response, 72-hour fault resolution, spare parts coordination | |
el detector configuration list:
| Serial number | name | Specification | quantity | unit |
| 1 | EL Camera | 16 megapixels | 1 | tower |
| 2 | EL infrared lens | 18-55mm | 1 | tower |
| 3 | tablet | Newmark | 1 | tower |
| 4 | Image transmission module | Wi-Fi Memory Card | 1 | set |
| 5 | Data cable/charger | standard | 1 | set |
| 6 | Camera Batteries | standard | 2 | piece |
| 7 | Detection bracket | 1.5 m | 1 | set |
| 8 | DC regulated power supply | 0～60V, 0～10A output; AC220 power input | 1 | tower |
| 9 | On the wire | 3 meters | 1 | root |
| 10 | Equipment three-proof box | standard | 1 | set |
| 11 | EL Image Transmission APP | Wirelessly view the inspection image in the camera | set | |
| * | Applicable scene | Component testing before installation of photovoltaic power station; component testing in warehouse; | ||
| * | other | The device has full automatic focus and can be carried by air |
