Portable open channel flow meter

1.Portable open channel flow meter product introduction

Portable open channel flow meter is a flow velocity and flow detection instrument used in rivers, open channels and pipelines. It uses ultrasonic detection technology, has high measurement accuracy, good stability, is less affected by environmental factors, has no rotating parts, has low maintenance frequency and high working reliability. It is the preferred product for portable flow velocity and flow measurement.

Applications: sponge cities, river chief management, inland river monitoring, natural rivers, open channels, pipelines, aquaculture and other scenarios.

Principle: The frequency difference between the transmitted and received ultrasound waves is related to the flow rate, and the time difference between the transmitted and received ultrasound waves is related to the liquid level. The static pressure liquid level is used for working conditions that require a large liquid level measurement range, and the ambient temperature measurement is used to correct the actual propagation speed of the ultrasound wave.

2. Product Features of Portable Open Channel Flow Meter

The sensor supports instantaneous flow and cumulative flow functions

Can measure the flow rate of still water

Able to measure flow in partially full pipes, full pipes and open channels

Can measure flow in rectangular, circular, trapezoidal and triangular cross sections

Wide flow rate measurement range, 0~10m/s, bidirectional

High flow rate measurement accuracy, 1mm/s error

Ultrasonic measurement of liquid level has high accuracy, with an error of 1mm (within 2m)

Pure physical method measurement, no calibration required

Support static pressure level measurement

Support temperature compensated flow rate measurement and liquid level measurement

ModbusRTU protocol

The sensor protection level is IP68, supporting long-term underwater operation

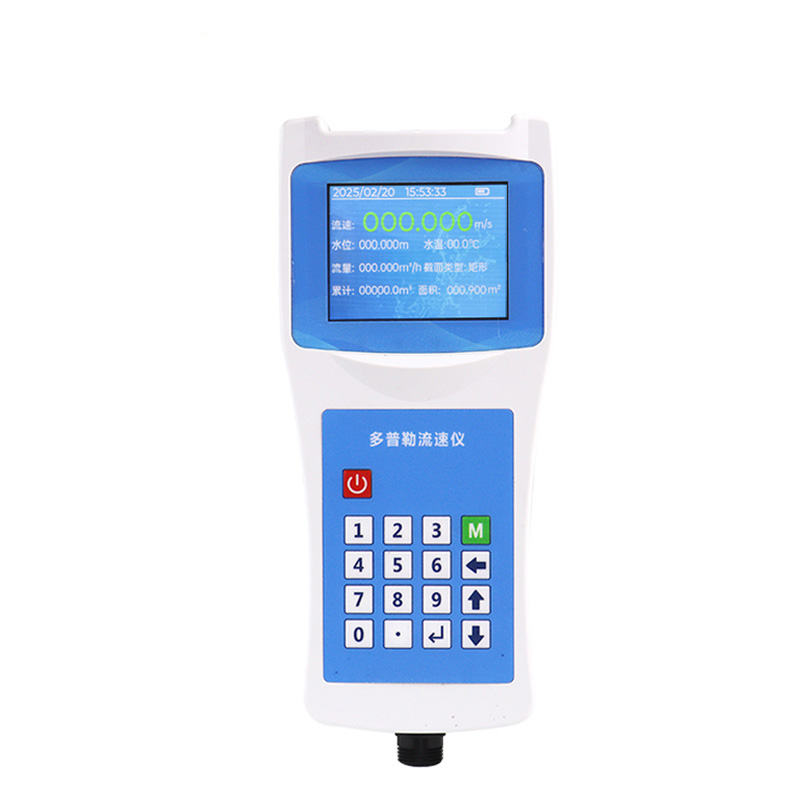

Portable solution: sensor + handheld device + measuring rod, suitcase to accommodate all accessories

Suitcase size: 435*320*135mm

3. Portable open channel flow meter technical parameters
