Vehicle Weather Station

1.Vehicle Weather Station Product Introduction

Vehicle Weather Station is a highly integrated, low-power, fast-installation, high-precision automatic weather observation device that is easy to monitor on the move.

It is widely used in meteorology, agriculture, forestry, environmental protection, ocean, airports, ports, scientific investigation, campus education and other fields.

The device uses a five-element integrated sensor, which can conduct real-time observation of meteorological elements such as wind speed, wind direction, air temperature, humidity, and atmospheric pressure.The sensor casing is made of imported Stainless steel material, which is more effective against salt spray and other environments, and the protection level reaches IP65 or above.

It has three built-in 120° wide-angle cameras and is equipped with host computer software, so you can view video images and monitoring data in real time on the PC.

The standard 485 to USB cable can be connected to a laptop or pad to read data directly.Customers can choose a pad at random according to their own situation.

2.Vehicle Weather Station Product Features

1.The ultrasonic probe is hidden on the top cover to avoid interference from rain and snow accumulation and avoid being blocked by natural wind.

2.The principle is to transmit continuous frequency-converting ultrasonic signals and detect wind speed by measuring relative phase.

3.The bottom of the device is equipped with a high-strength magnet (wrapped in rubber), which can be adsorbed on the roof without damage

4.Shock-absorbing suitcase, easy to carry

5.Built-in electronic compass, automatically finds north

6.Beidou and GPS dual-mode positioning, with the highest accuracy of 0.1 meter

3.Vehicle Weather Station Technical Parameters

1.Wind speed: Ultrasonic principle, 0~60m/s (±0.1m/s), can measure the real wind speed

2.Wind direction: Ultrasonic principle, 0~360° (±2°)

3.Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃)

4.Air humidity: Measurement principle: capacitive, 0-100%RH (±3%RH)

5.Atmospheric pressure: Measurement principle: piezoresistive, 300-1100hpa (±0.25%)

6.Data storage: no less than 500,000 records

7.Camera: 3, 120° wide angle, resolution 640*480

8.Power consumption: 3.12W

9.Lithium battery: capacity 12000maH, battery life ≥ 24h

10.Total weight: ≤5kg

11.Installation time: 1 person, no more than 2 minutes to complete the installation

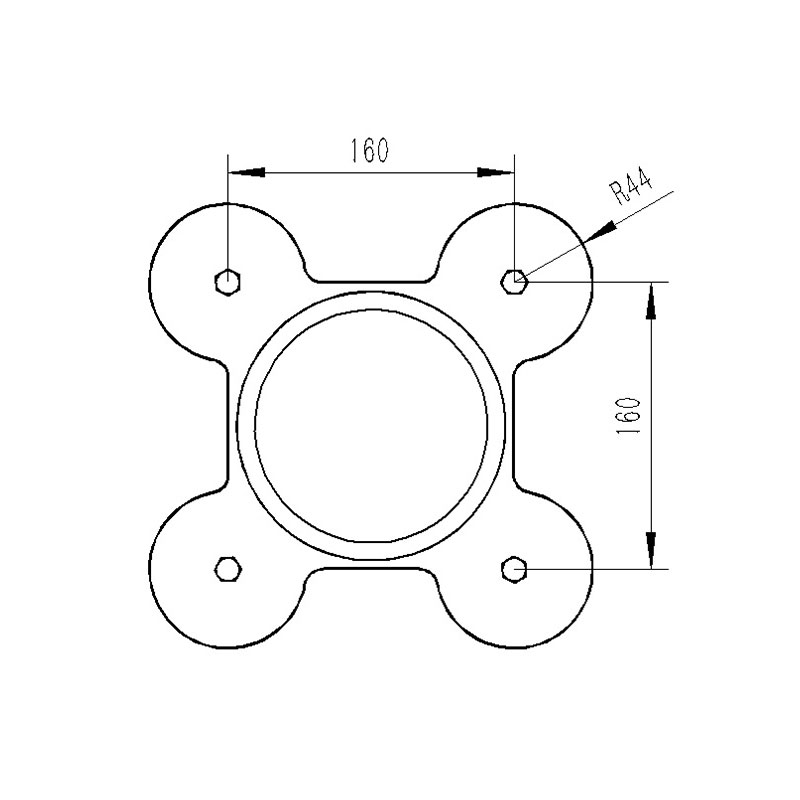

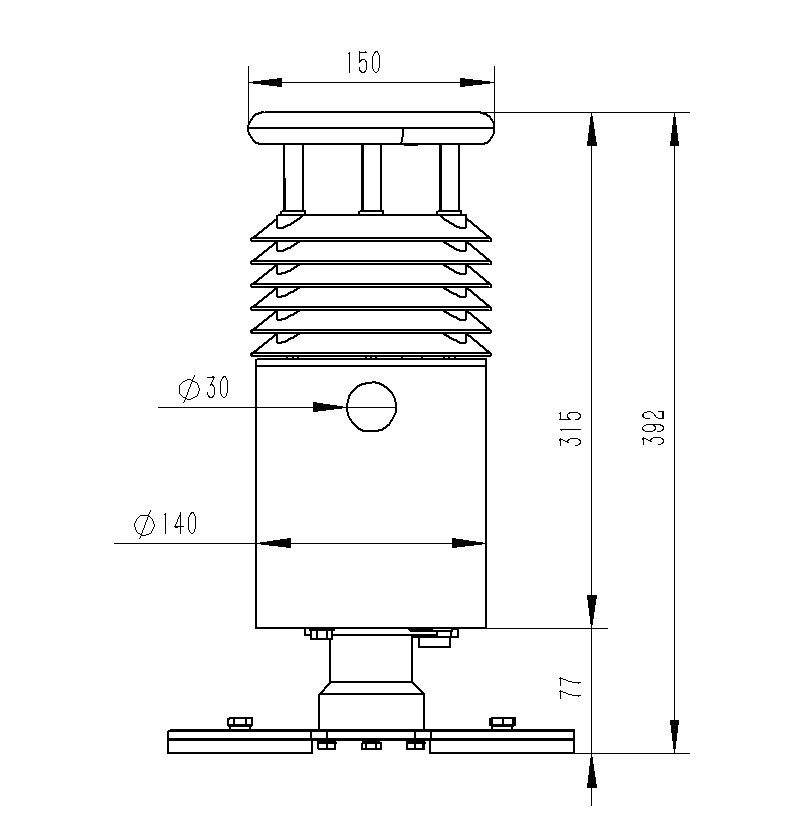

4.Vehicle Weather Station Dimensions

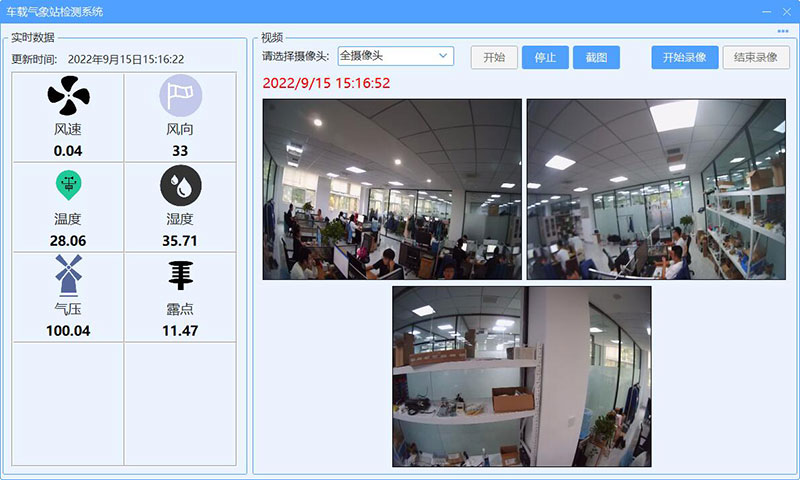

5.Vehicle Weather Station PC interface display

6.Vehicle Weather Station host computer software introduction

1.PC stand-alone version of data receiving, storage, viewing and analysis software

2.Support serial port data reception, processing and display

3.Support json string, modbus485 and other communication methods

4.The storage time can be set by yourself, and the acquisition time can be set by yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts
