Negative oxygen ion monitoring system

1.Negative oxygen ion monitoring system product introduction

Negative oxygen ion monitoring system can monitor the concentration of negative oxygen ions in the air around the clock, and can expand monitoring items according to user needs, such as: air temperature, air humidity, PM2.5, PM10, atmospheric pressure, oxygen content, noise, wind speed, wind direction and other meteorological elements.The sensor is integrated with no mechanical displacement, high precision and long service life.

Data can be read on-site through the full-color LCD screen, and can also be viewed in real time on the remote cloud platform/WEB/WeChat public account

On-site users can add customized songs and also make voice announcements when exceeding the limit

2.Application scope of negative oxygen ion monitoring system

Tourist attractions, ecological estates, wetland parks, waterfall parks, forest parks, nature reserves, sales offices, schools

3.Technical parameters of negative oxygen ion monitoring system

1.Wind speed: Measurement principle: ultrasonic, 0~60m/s (±0.1m/s) resolution: 0.01m/s

2.Wind direction: Measurement principle: ultrasonic, 0~360° (±2°) resolution: 1°

3.Air temperature: Measurement principle: diode junction voltage method, -40-60℃ (±0.3℃) resolution: 0.01°

4.Air humidity: Measurement principle: capacitive, 0-100%RH (±0.3%RH) resolution: 0.1%RH

5.Atmospheric pressure: Measurement principle: piezoresistive, 300-1100hpa (±0.25%), resolution: 0.1hpa

6.PM2.5: Measurement principle: light scattering, 0-1000ug/m3 (±10%), resolution: 1ug/m3

7.PM10: Measurement principle: light scattering, 0-1000ug/m3 (±10%), resolution: 1ug/m3

8.Noise: Measurement principle: Capacitive, 30-120dB (±1.5dB) Resolution: 0.1db

9.Negative oxygen ions: Measurement principle: cylindrical electrode inhalation type, 0-100,000/cm³ (±10%), resolution: 1/cm³

10.Oxygen content: Measurement principle: electrochemical, 0~25%Vol (±3%FS) resolution: 0.1%

11.Screen: resolution 1920 (RGB) × 1080 (FHD), operating frequency 120Hz, brightness 1500-2500 cd/m2

12.Pole: Carbon steel double column, can withstand 15-level strong typhoon

13.Working environment: temperature -40℃-60℃, humidity 0%-100%

14.Data storage: can store one year's original monitoring data

15.Data transmission: 4G/optical fiber

16.Power supply: 220V mains

17.Power consumption: 500w

4.Features of Negative oxygen ion monitoring system

1.The whole machine adopts highly integrated modular design and standardized electrical design, the working status is clear at a glance, and fast maintenance can be achieved

2.Waterproof: The main structure is made of 2-3mm carbon steel, combined with composite sealing strips to achieve multi-angle waterproofing

3.Dust prevention: The bottom of the equipment is equipped with a filter device, which can filter dust particles larger than 5μm.At the same time, the filter cotton can be quickly replaced from the outside without the need for professional operation.

4.Lightning protection and leakage protection: There are lightning protection devices and leakage protectors inside to protect the safety of the machine and the surrounding personnel.

5.Use high-transparency, high-temperature-resistant and high-strength tempered glass, fireproof, scratch-proof and explosion-proof

6.Speaker: Outdoor high-power waterproof speaker, dual-channel design, clear and three-dimensional sound

7.Built-in photosensitive probe can effectively identify changes in lighting and automatically adjust screen brightness

8.The display screen uses LED backlight with a lifespan of 50,000 hours.It is environmentally friendly and energy-saving with high dynamic contrast and clearer display images.

9.The cooling system adopts industrial-grade eddy current centrifugal fan with large air volume, high speed and low noise.It has built-in temperature sensor to effectively identify internal temperature changes.It can also adjust the response temperature and response speed according to the on-site environment to achieve low energy consumption and precise temperature control.

10.Built-in time switch, you can set the scheduled opening and closing time

11.Full-color display interface, the device automatically enters the meteorological monitoring platform when it is turned on (the display screen supports limited customization)

12.Optional camera, the display interface can be synchronized with the camera screen

13.Integrated sensor, integrated sensor, easy installation and simple maintenance

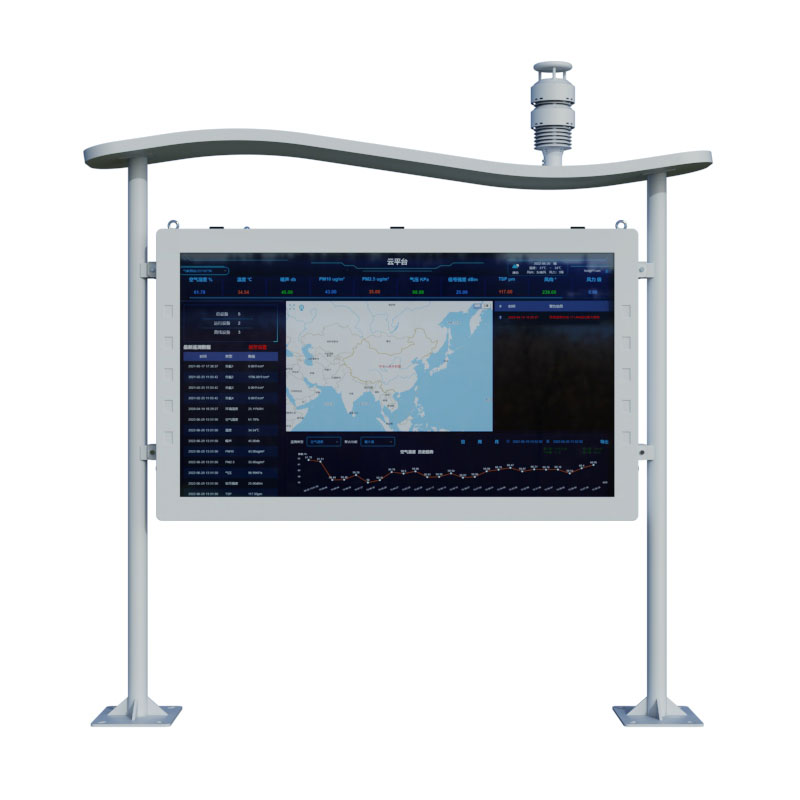

5.Negative oxygen ion monitoring system product structure diagram

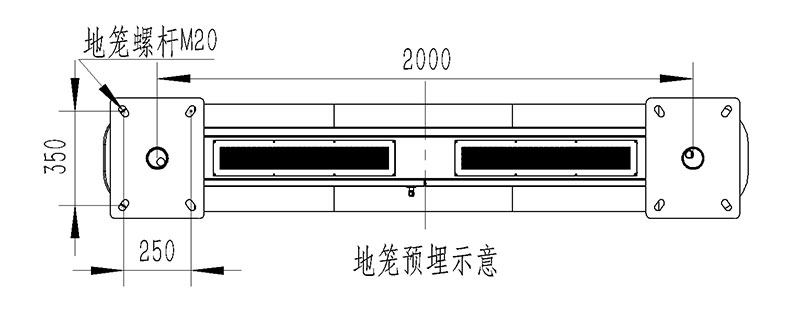

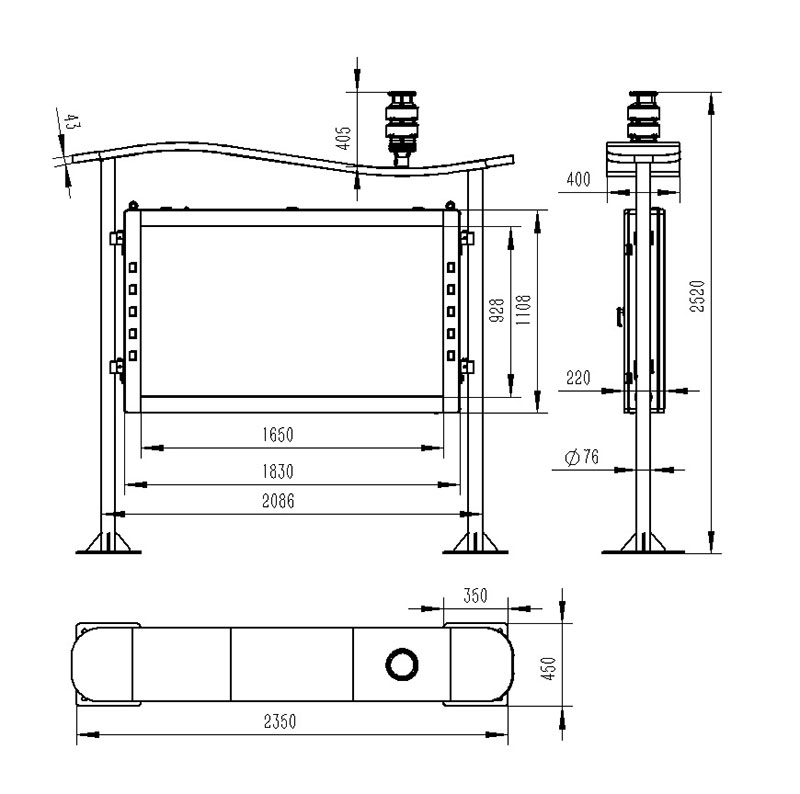

6.Negative oxygen ion monitoring system product dimensions

7.Introduction to Negative oxygen ion monitoring system cloud platform

1.CS architecture software platform, supports direct observation through mobile phones and PC browsers, without the need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts

12.Support synchronization of local weather forecast
