Uav visibility meter

1.Uav visibility meter product features

1. Uav visibility meter weighs only 110 grams and is designed for monitoring and collecting meteorological data in the air for unmanned aircraft or small unmanned inspection aircraft;

2. Compact in appearance, with strong anti-electromagnetic interference and dust-proof functions, it can work normally at an altitude of 4,000 meters and an environment of minus 20 degrees;

3. The "four super" visibility meter has an ultra-mini shape, ultra-low wind resistance, ultra-light weight and ultra-low power consumption. The power consumption is only 0.9 watts, making it very suitable for small UAV platforms and flight control systems, as well as environmental monitoring using aircraft;

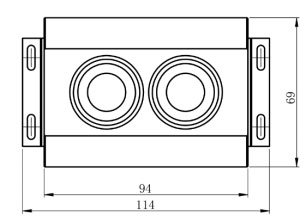

2. UAV visibility meter size and weight

Visibility Dimensions: 94mm * 69mm * 42mm

Visibility + mounting bracket size: 114mm * 69mm * 73mm

Visibility Weight: 110g

3. Main technical parameters of UAV visibility meter

Detection range: 10-4000 meters

Measurement accuracy: ±15%

Light source: IR LED

Response time: 10 seconds

Digital output: RS485, RS232, SDI-12

Bluetooth output: BLE5.0 (optional)

Operating temperature: -20 -50 °C

Working humidity: 0-95%

Supply voltage: VDC 12-24V

Power consumption: 0.9W

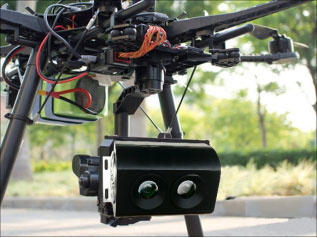

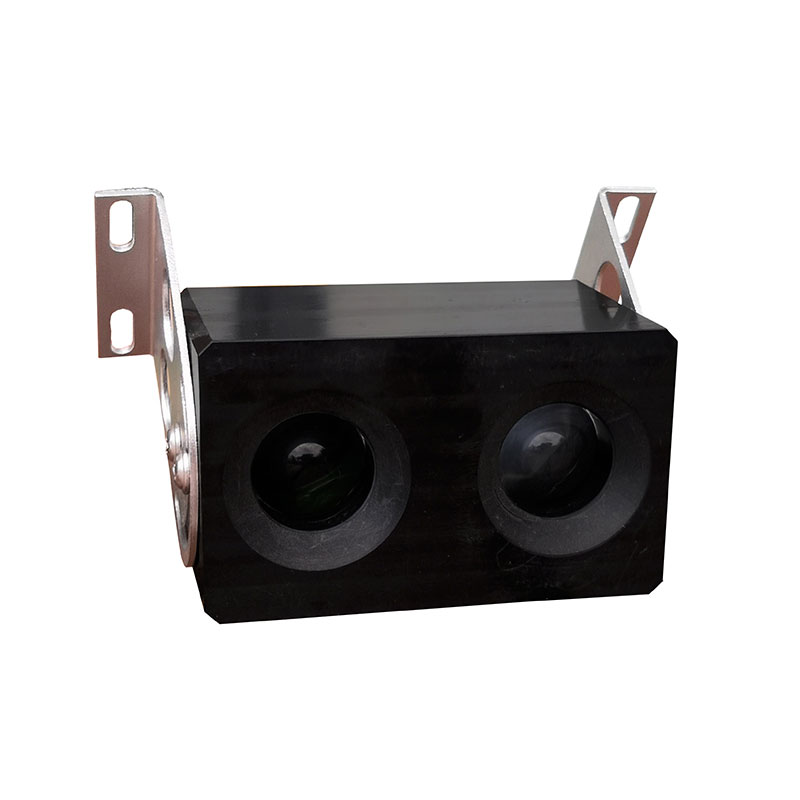

4. Uav visibility meter product size and physical picture
