Model:FT-ZD2
Brand:fengtu
1.Video telemetry terminal product overview
Video telemetry terminal is an industrial telemetry monitoring device that integrates traditional telemetry terminal functions, 4G wireless, Ethernet transmission, and wireless video monitoring functions. It realizes data collection, storage, control, alarm, transmission, image capture, video overlay and other functions such as hydrology/water resources/environmental protection/energy consumption. It supports equipment communication, has built-in IO input and output, analog quantity acquisition, and can be used according to the on-site situation. It has video image overlay transmission, data acquisition and transmission functions, and has logical operation and logical control functions. It is mainly aimed at remote sensing, telemetry and remote monitoring applications in water resources, water conservancy, hydrology, water environment, environmental protection, industrial meteorology, agriculture, transportation, oil fields and other industries.
2. Video telemetry terminal equipment list
FT-ZD2Video telemetry terminal1 unit
2 3m suction cup antennas (4G)
2 rod antennas (WIFI)
1 network cable (1 meter)
1 power supply (AC 220v to DC 12vDC adapter)
1 small screwdriver
1 copy of instruction manual
After unpacking, please count the items. The specific quantity should be consistent with the order contract. If you find any damage, loss or inconsistent accessories, please contact the manufacturer in time.
3. Video telemetry terminal technical parameters
AI input configuration: 2-channel analog acquisition input
DI input configuration: 2-way switch input
DO output configuration: 1 relay output (optional)
Storage capacity: 64G loop storage
Equipped with 1 100M WAN port, providing high-speed network connection
Equipped with 4 100M LAN ports, providing high-speed transmission capabilities
Configure hotspot access to the wifi network (initial password 12345678)
Provide high-speed, low-latency, and highly stable 4G network communication
Serial port configuration: 2-way RS485
Power supply: 9V~24V DC.
Average current: <200mA/12V
Working environment: Temperature: -30℃~75℃; Humidity: <95% (no condensation)
Installation method: rail installation

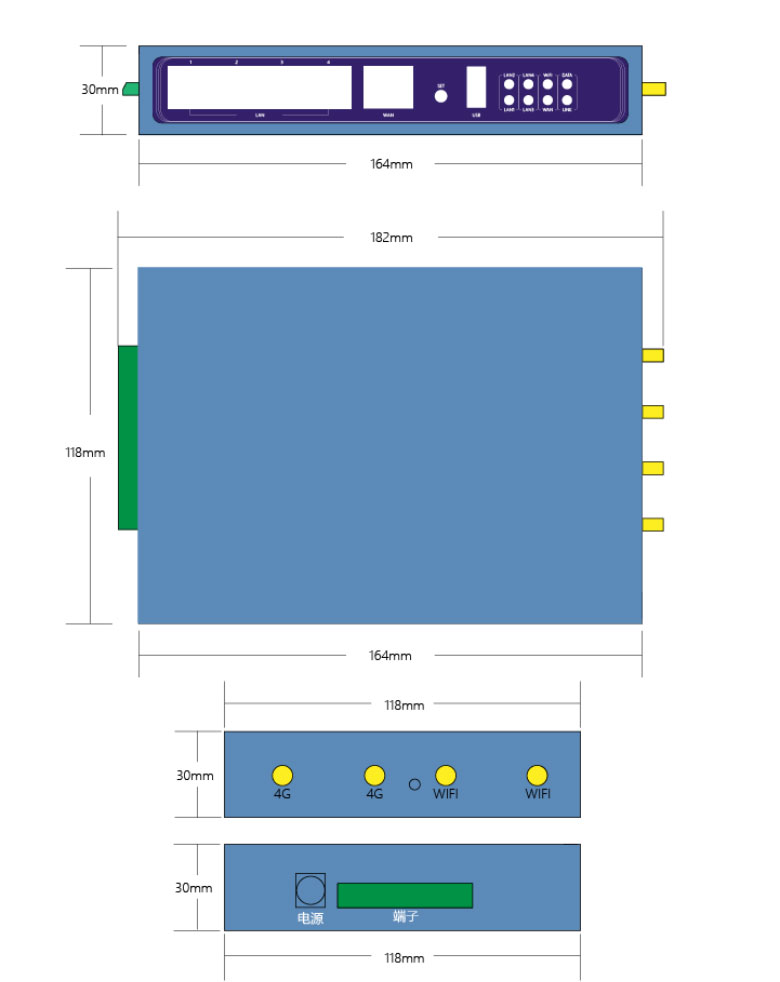

Dimensions: 182mm×118mm×30mm
4. Video telemetry terminal installation and fixation
