Buoy type water quality automatic monitoring system

1.Introduction to Buoy type water quality automatic monitoring system

1.Buoy type water quality automatic monitoring systemSFB adopts an enhanced integrated cone structure to increase equipment stability and durability, which is more in line with floating body engineering.

It can measure the hydrological, water quality and meteorological parameters in lakes or river basins in real time. The system integrates data collection and transmission, and has the function of SMS alarm for exceeding the standard and automatic light sensing. It has the characteristics of multiple measurement parameters, high measurement accuracy, large storage capacity, convenient networking and stable operation. The buoy adopts an unattended intelligent control system to complete the data collection and data transmission of multiple sensors; the solar panels and large-capacity batteries form a solar power supply system to ensure the power required for the system to work in the field for a long time; the buoy body is made of ultra-high molecular polyethylene material, which has good anti-corrosion ability, prevents biological attachment, does not fade, has strong anti-collision ability, anti-lightning, non-magnetic and other characteristics, and is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2.SFB04 buoy is composed of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen), data acquisition instrument, communication system, power supply system, overall bracket, and water quality monitoring platform. It can also expand ammonia nitrogen, turbidity, COD, and multiple water quality elements. The data acquisition instrument has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2. Buoy type water quality automatic monitoring system product features

1. Easy to deploy: various types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system can be quickly put online;

2. Easy maintenance: After the equipment is installed, it can work automatically without manual supervision. The normal operation of the equipment can also be ensured by remote monitoring;

3. Easy to expand: sensor probes all use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4. Low power consumption: The device can run for a long time in a low power consumption state, increasing the convenience of device use;

5. Real-time: The data monitored by the equipment is transmitted to the cloud platform in real time to improve the timeliness of environmental data feedback.

3. Technical parameters of Buoy type water quality automatic monitoring system

1. Subject parameters

Main parameters of optional sensors

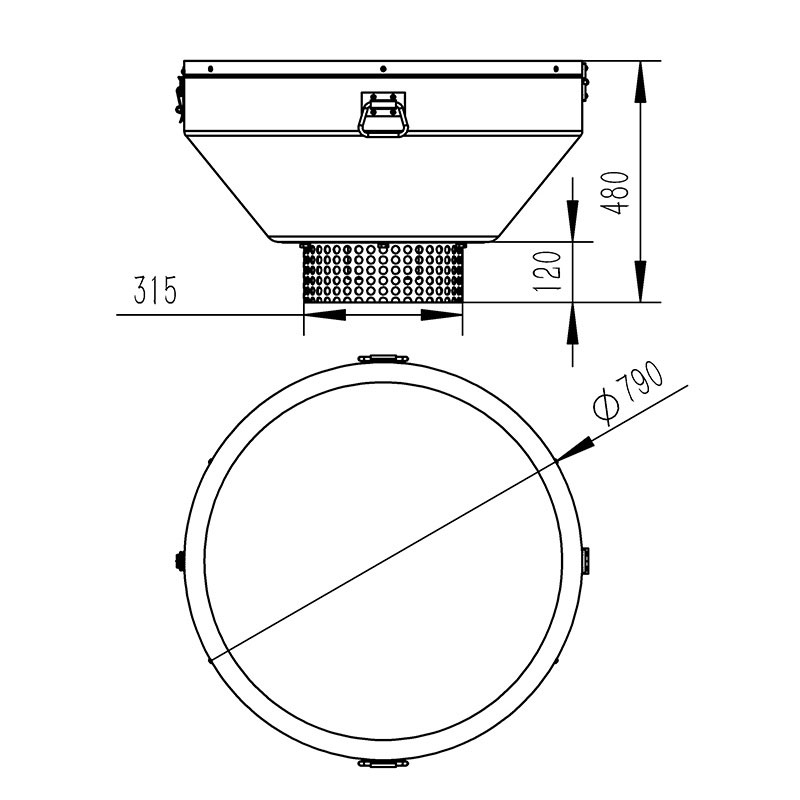

4. Buoy type water quality automatic monitoring system product size diagram

5. Buoy type water quality automatic monitoring system equipment installation requirements

1. Stay away from high-power radio transmitters

2. Stay away from high-voltage transmission lines and microwave radio transmission channels

3. Try to be close to the data transmission network

4. Stay away from strong electromagnetic interference

6. Buoy type water quality automatic monitoring system cloud platform introduction

1.CS architecture software platform, supports direct observation via mobile phone and PC browser. No additional software installation is required.

2.Support multiple accounts and multiple devices login

3. Support real-time data display and historical data display dashboard

4. Cloud server. Cloud data storage, stable and reliable, easy to expand, and load balanced.

5.Support SMS alarm and threshold setting

6.Support map display and view device information.

7.Support data curve analysis

8.Support data export in table format

9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10. Support data post-processing function

11.Support external running of javascript scripts
