Waste Water Quality Monitoring

Waste Water Quality Monitoring

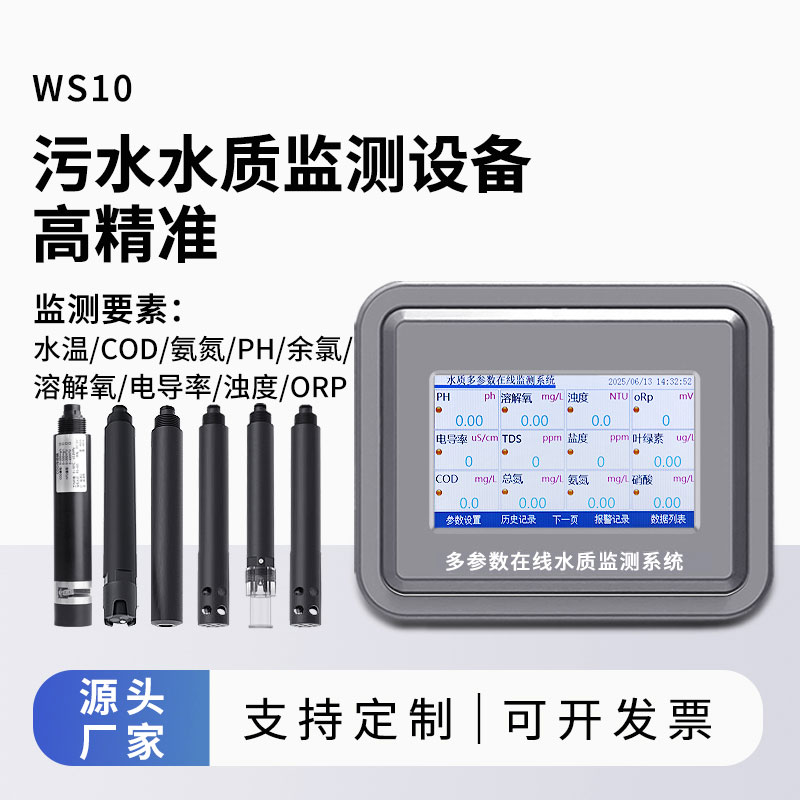

Model:FT-WS10

Brand:fengtu

1. Waste Water Quality Monitoring Product IntroductionWS10 Online Waste Water Quality Monitoring is an instrument that can monitor water temperature, COD, ammonia nitrogen, pH, residual chlorine, dissolved oxygen, conductivity, turbidity, and ORP online. It integrates the corresponding sensors and m
  • Product details
  • Related products
  • Related articles

1. Waste Water Quality Monitoring Product Introduction

WS10 Online Waste Water Quality Monitoring is an instrument that can monitor water temperature, COD, ammonia nitrogen, pH, residual chlorine, dissolved oxygen, conductivity, turbidity, and ORP online. It integrates the corresponding sensors and measurement module communication storage, and can quickly and accurately record key parameters in the water body. At the same time, the instrument supports the expansion of water quality multi-parameter sensors, including but not limited to pH value, dissolved oxygen (DO), conductivity, turbidity, temperature, ammonia nitrogen, etc., which can be combined and configured according to different needs and applications, record and store historical monitoring data, alarm history records, and support historical data export.xlsx. The RS485 interface supports the MODBUS-RTU communication protocol to facilitate users to communicate freely with PLC, DCS, configuration software, DTU and other devices to connect and transmit data.

2. Application fields of Waste Water Quality Monitoring

Online Waste Water Quality Monitoring is widely used in the monitoring and control of various water bodies, including but not limited to the following areas:

1. Water plant: used to monitor the pH value, dissolved oxygen, turbidity and other parameters of tap water to ensure the safety and hygiene of tap water.

2. Groundwater monitoring: used to monitor groundwater parameters such as pH value, conductivity, temperature, etc., so as to detect and solve water quality problems in time.

3. River and lake monitoring: used to monitor the water quality of rivers and lakes, such as dissolved oxygen, turbidity, ammonia nitrogen and other parameters, so as to take timely pollution control measures.

4. Ocean monitoring: used to monitor the water quality of the ocean, such as salinity, dissolved oxygen, temperature and other parameters, so as to timely detect and control marine pollution.

5. Sewage treatment: used to monitor sewage water quality parameters, such as pH, COD, ammonia nitrogen, etc., in order to control and adjust the sewage treatment process.

6. Industrial production: used to monitor water quality in industrial production processes, such as pH, conductivity, dissolved oxygen and other parameters, so as to adjust the process in time and ensure product quality.

7. Scientific research: used for water quality monitoring in the field of scientific research, such as lake eutrophication, climate change, etc.

3. Technical Features of Waste Water Quality Monitoring

1. High reliability: suitable for long-term work in the field environment, stable measurement and strong anti-interference ability.

2. Flexible and portable: Each probe can be freely combined, replaced independently, and plug and play.

3. Scalability: Various sensors can be freely combined.

4. Multiple applications: on-site rapid measurement, emergency monitoring, or long-term online monitoring of groundwater, river water, lake water, and urban pipe network water.

5. Tough shell: ABS+PC material, corrosion-resistant, can work normally for a long time.

6. Compact structure: can be installed in small places.

7. Communication connection: RS485 expansion interface, master/slave interface isolation and independent communication.

4. Waste Water Quality Monitoring Technical Parameters

Display Output 4.3-inch touch screen with strong LED backlight, can be operated under direct sunlight
power supply DC power supply: DC12V
Power consumption The power consumption of the instrument is about 12V/1W
Sound Output buzzer
Communication Protocol Standard RS485 Modbus-RTU protocol and device master/slave transmission channel support
Main Materials ABS+PC material
Storage temperature -20 to 70°C
Operating temperature -10 to 50°C
Protection level IP65
size 175mm*140mm*49mm(length×width×height)
weight About 0.5KG

5. Waste Water Quality Monitoring Sensor Configuration

Model Name Measurement range Principle Measurement accuracy Resolution Is it standard equipment Note
S1S cod 0~1000mg/L UV254 absorption method ±5%, ±0.3℃ 0.1mg/L cod turbidity integrated; brush self-cleaning, with temperature compensation
Turbidity 0~400NTU Scattering light method ±1%, ±0.3℃ 0.1NTU
S4 Residual chlorine 0~5.00mg/L Ion selective electrode method ±5% of the reading; ±0.3℃ 0.01mg/L Free chlorine pH integrated; Best accuracy at flow rate 0.42m/s-0.85m/s; With temperature compensation
pH 0~14 (ph) Electrochemistry (salt bridge) ±0.1PH;±0.1℃ 0.01
S5 Ammonia nitrogen 0~1000mg/l Ion selective electrode method 10% of the reading, ±0.5℃ 0.01mg Ammonia nitrogen pH integrated; with temperature compensation
pH 0~14 (ph) Electrochemistry (salt bridge) ±0.1PH;±0.1℃ 0.01
S6 ORP -1500mv~1500mv Electrochemistry (salt bridge) ±6mv 1mV
S7 Electrical conductivity 0~10000uS/cm Contact method of electrode ±1.5%; ±0.1°C 1uS/cm With warm supplement
S8 Dissolved oxygen 0~20mg/L Fluorescence lifetime method ±2%, ±0.3℃ 0.01mg/L With warm supplement
