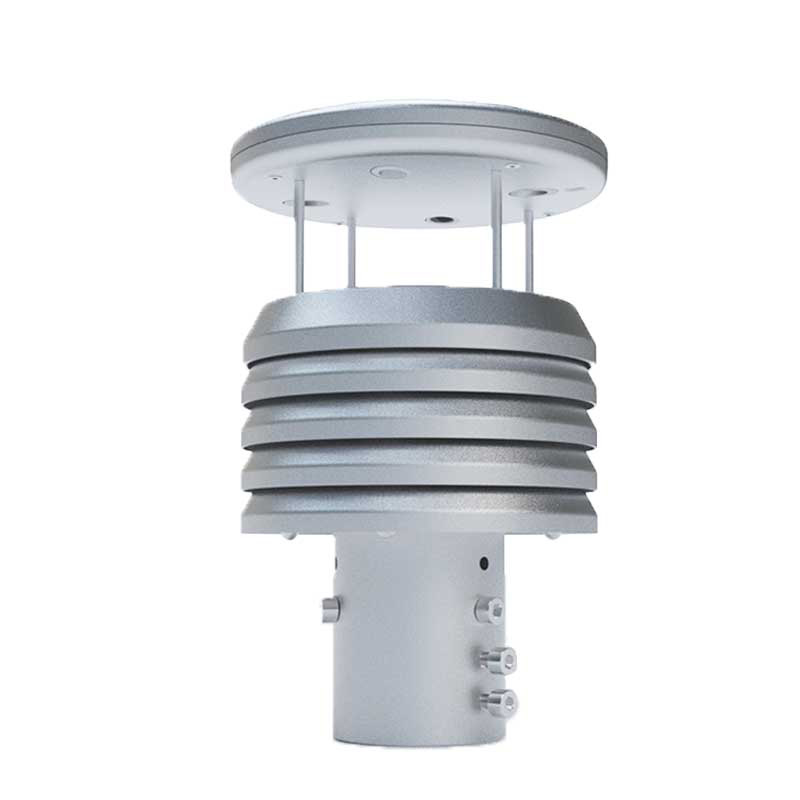

6 in 1 Ultrasonic Weather Station Sensor

1.6 in 1 Ultrasonic Weather Station Sensor Product Introduction

Shandong Fengtu Internet of Things Technology Co., Ltd., as a company specializing in the development, production and sale of micro-meteorological instruments, has been committed to the promotion and application of micro-meteorological instruments and meteorological environment solutions. With a complete production chain, a strong technical team and a comprehensive marketing team, the meteorological products we develop and produce, such as ultrasonic wind speed and direction instruments, five-element micro-meteorological instruments, six-element micro-meteorological instruments and small automatic weather stations, have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, marine vessels, aviation airports, bridges and tunnels, etc., with customers all over the country, and have achieved good social and economic benefits.

The principle of the FT-Y6S six-element micro-meteorological instrument is to emit a continuous frequency-converting ultrasonic signal and detect wind speed and direction by measuring the relative phase. Compared with the traditional ultrasonic anemometer, our product overcomes the need for a high-precision timer and avoids the measurement inaccuracy caused by sensor startup delay, demodulation circuit delay, and temperature changes.

The FT-Y6S six-element micro-meteorological instrument innovatively realizes the six meteorological standard parameters (ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, and piezoelectric rainfall) through a highly integrated structure, which can realize 24-hour continuous online monitoring of outdoor meteorological parameters and output the six parameters to the user at one time through the digital communication interface.

2. Features of 6 in 1 Ultrasonic Weather Station Sensor

1. The top cover hides the ultrasonic probe to avoid interference from rain and snow accumulation and avoid being blocked by natural wind (utility model patent, patent number ZL 2020 2 3215713.X)☆

2. The principle is to emit a continuous frequency-variable ultrasonic signal and detect wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3. Wind speed, wind direction, temperature, humidity, atmospheric pressure, and piezoelectric rainfall six elements integrated (utility model patent, patent number ZL 2020 2 3215649.5)☆

4. Using advanced sensing technology, real-time measurement, no start-up wind speed☆

5. Strong anti-interference ability, with watchdog circuit and automatic reset function to ensure stable operation of the system

6. High integration, no moving parts, zero wear

7. Maintenance-free, no need for on-site calibration

8. Made of stainless steel, high strength, anti-oxidation and anti-corrosion

9. The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading☆

10. Optional external wireless transmission module, minimum transmission interval 1 minute

11. Optional built-in heating module: heating current 1A (DC12V), heating power consumption 12-15W

12. Integrated design with less wear, long service life and fast response speed

3. 6 in 1 Ultrasonic Weather Station Sensor Technical Specifications

1. Wind speed: 0~60m/s (±0.1m/s); (Beijing Meteorological Calibration Certificate)

2. Wind direction: 0~360° (±2°); (Beijing Meteorological Calibration Certificate)

3. Air temperature: -40-60℃ (±0.3℃); (Calibration certificate from Beijing Meteorological Bureau)

4. Air humidity: 0-100%RH (±3%RH); (Calibration certificate from Beijing Meteorological Bureau)

5. Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate from Beijing Meteorological Bureau)

6. Piezoelectric rainfall: 0-4mm/min (±4%)

7. Power: 1.08W

8. The manufacturing enterprise has ISO quality management system, environmental management system and occupational health management system certification☆

9. The manufacturer has a computer software registration certificate☆

10. The manufacturer is a 3A credit enterprise☆

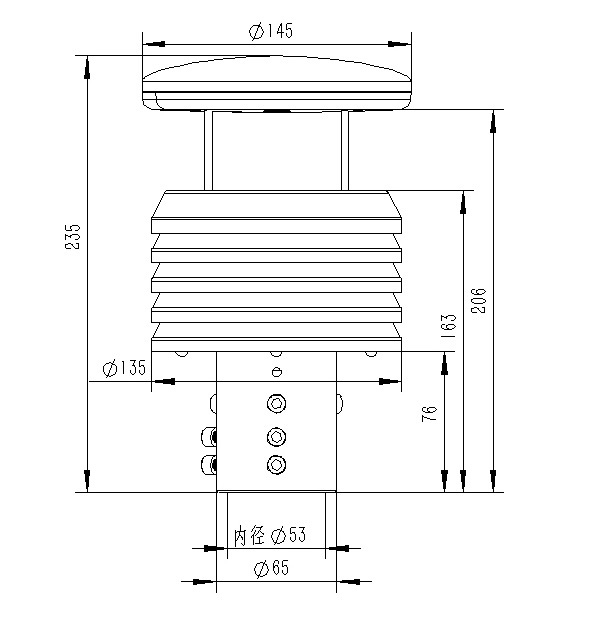

4. 6 in 1 Ultrasonic Weather Station Sensor Product Dimensions

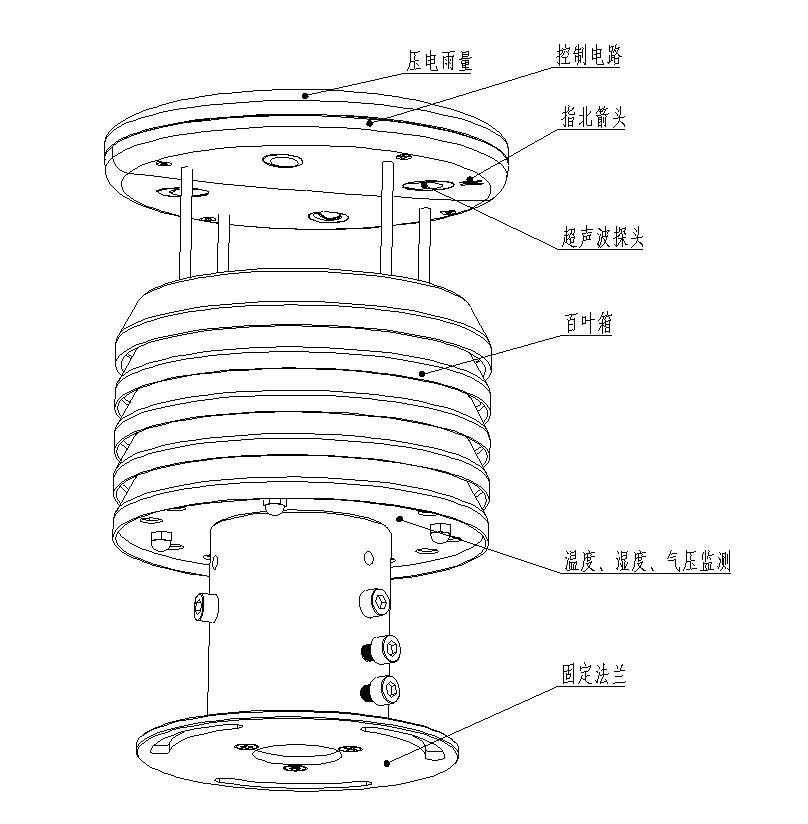

5. 6 in 1 Ultrasonic Weather Station Sensor Product Structure

6. 6 in 1 Ultrasonic Weather Station Sensor Notes

1. The sensor should be within a radius of 1 meter horizontally without any obstruction to avoid the impact of water droplets splashing

2. The sensor should be installed away from strong mechanical vibration sources

3. The area above the sensor should be open, and raindrops should fall directly onto the sensor, avoiding secondary dripping and continuous water flow impact.
